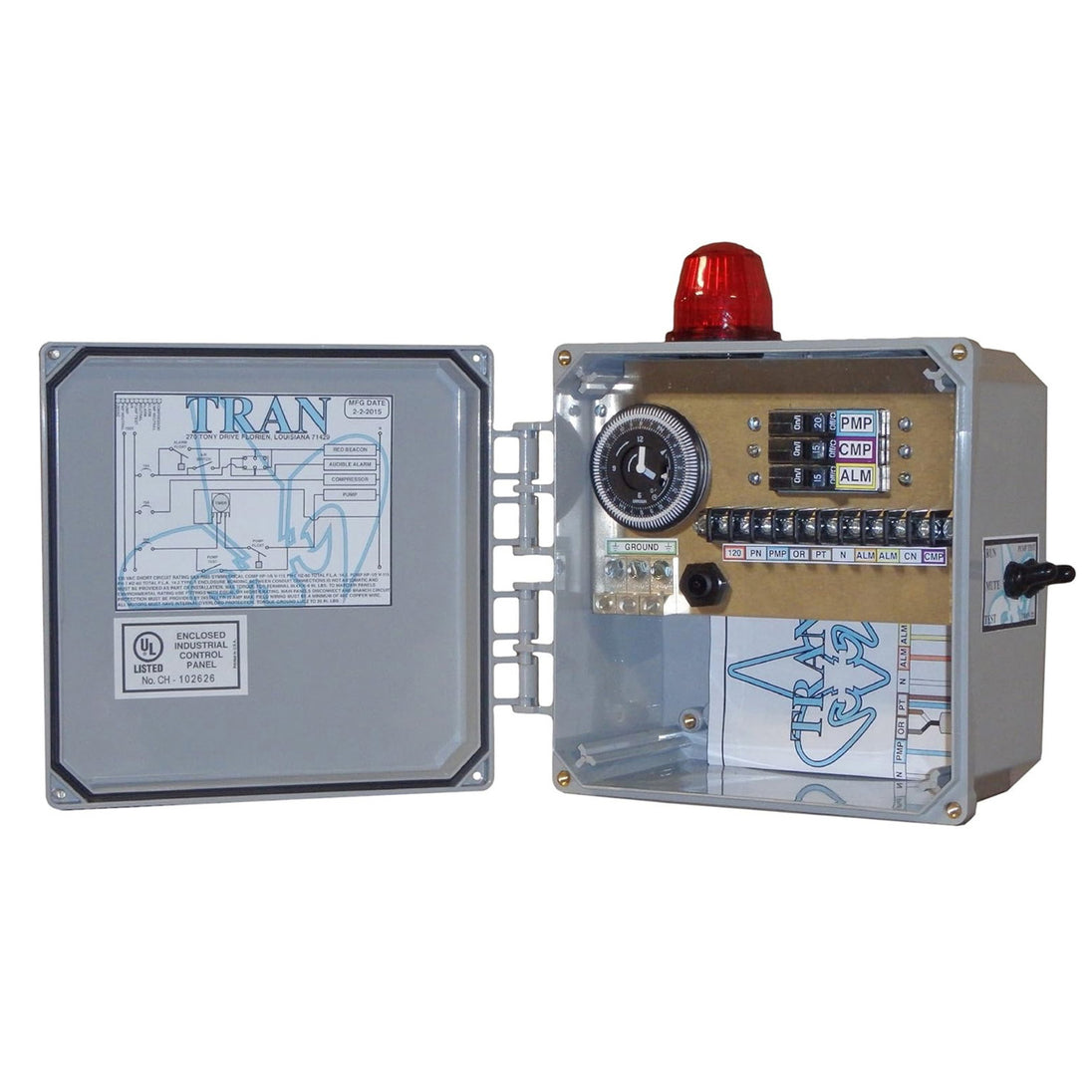

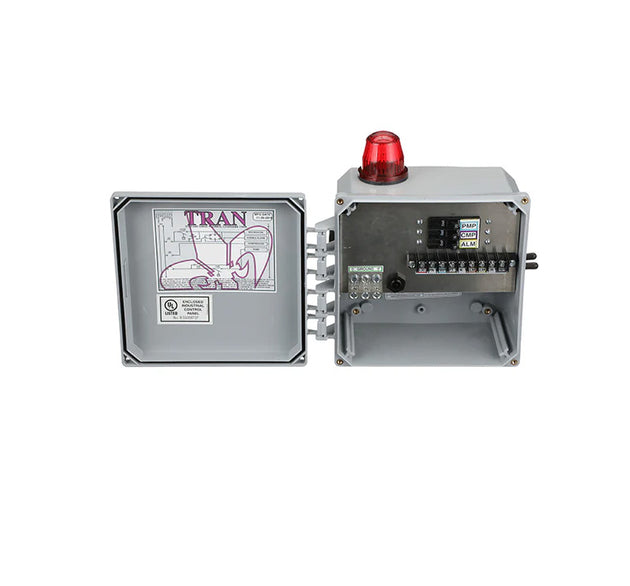

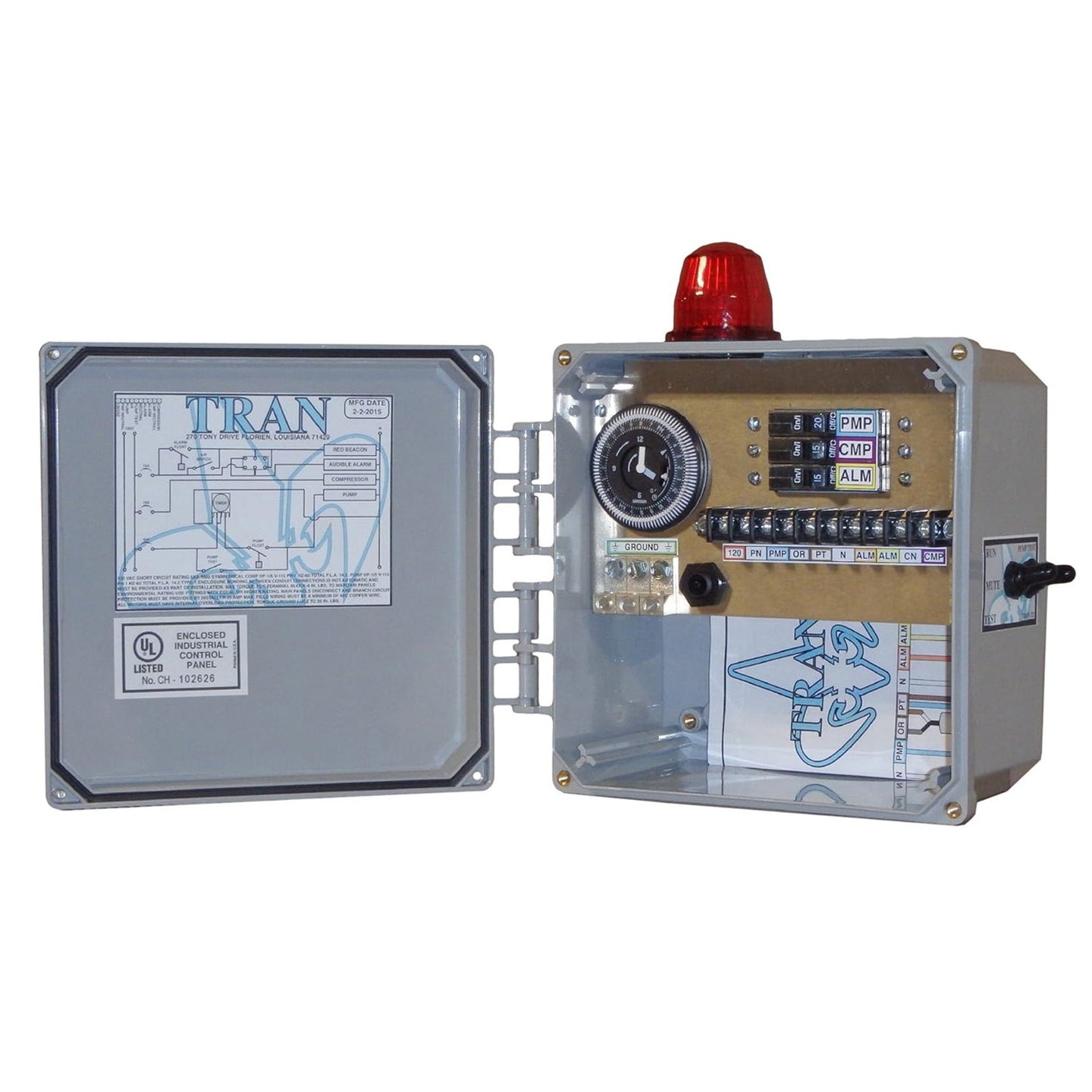

The Tran line of control panels will replace most septic aerobic system control panels. Constructed with high quality materials made in the USA. Simple layout makes installation easy for beginners.
Features
- UL Listed Enclosure
- Red Light to Signal Pump & Compressor Malfunction
- Audio Alarm to Signal Pump & Compressor Malfunction
- Alarm Run/Mute/Test Switch
- Pump Test Switch

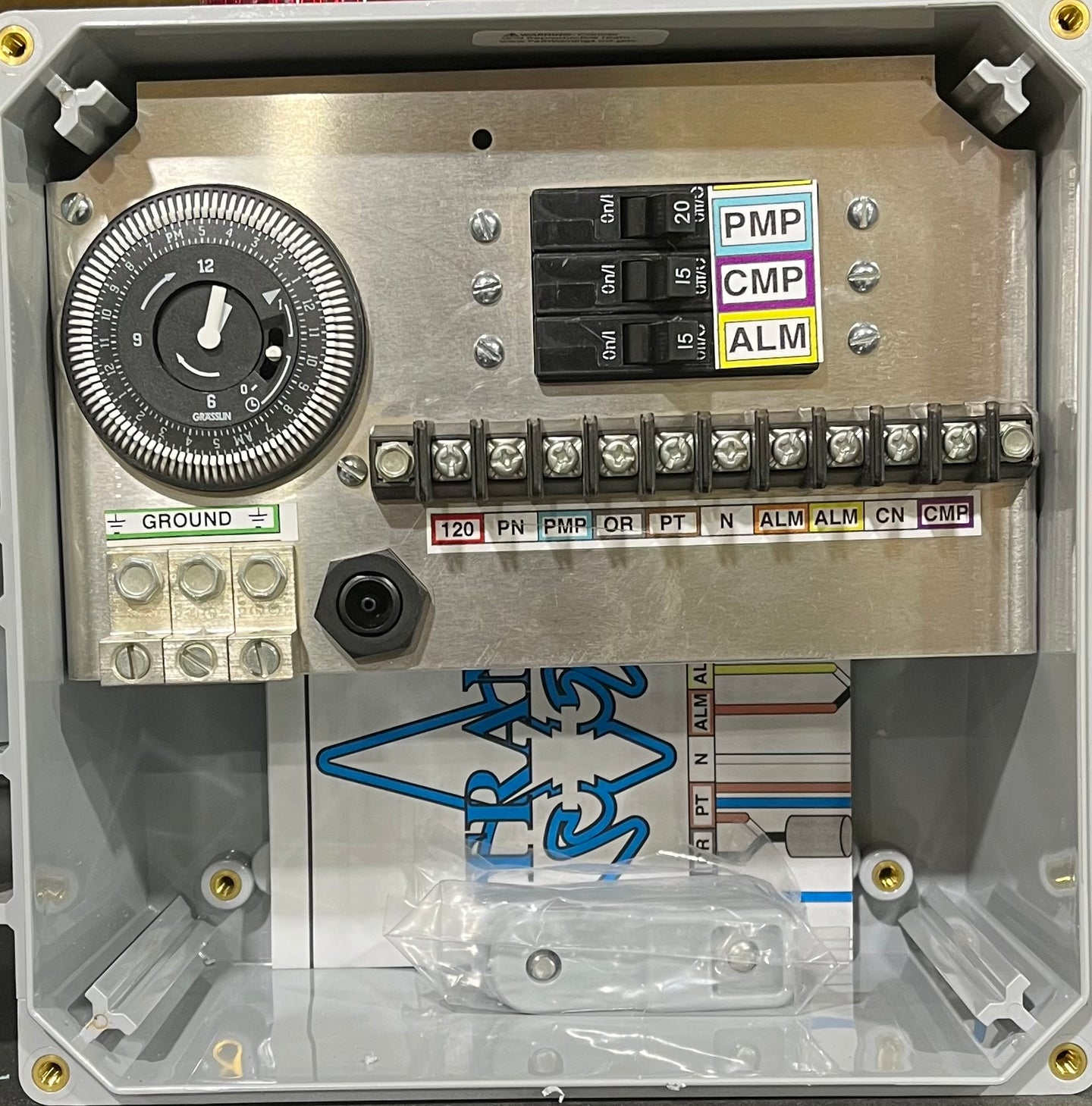

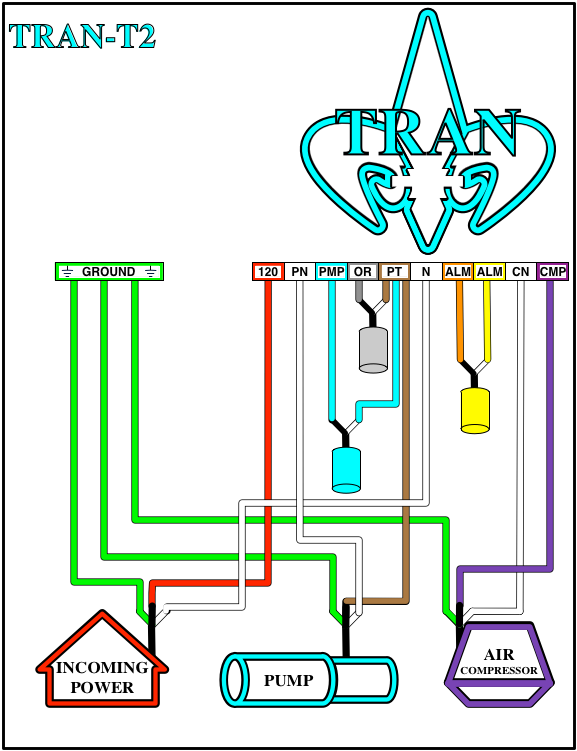

- Labeled & Color Coordinated Terminals
- Mounting Brackets Included
- 24hr Timer
- Air Pump Pressure Switch
3 Circuit Breakers (20A Pump, 15A Compressor, 15A Alarm)

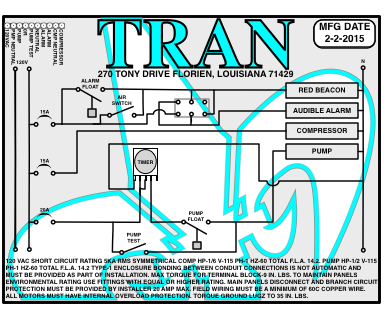

120 VAC 14.2 F.L.A Short Circuit Rating 5KA RMS Symmetrical Comp HP-1/6 V-115 PH-1 HZ-60 Total F.L.A. 14.2
Pump HP-1/2 V-115 PH-1 HZ-60 Total F.L.A. 14.2 Type-1
