Designed to pump treated effluent longer distances than normal effluent sump-style pumps, the E-Series is ideal for deep water and higher head pumping applications such as effluent or wastewater from an aerobic treatment system to a spray irrigation or sprinkler system, drip irrigation system, mound system, or any other high-pressure secondary treatment system. Built with a renowned Franklin Electric submersible motor, the E-Series provides maximum durability with years of reliable service.



Ratings
HP 60Hz 1/2 hp
Frequency 60 Hz
Phases Single-Phase
Amps - Service Factor 12 A
Volts 115 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 2-Wire
Motor Submersible
Continuous Duty Yes
Efficiency Service Factor Load [%] 62.00 %
Lead Retainer Method Lead Jam Nut

Operation

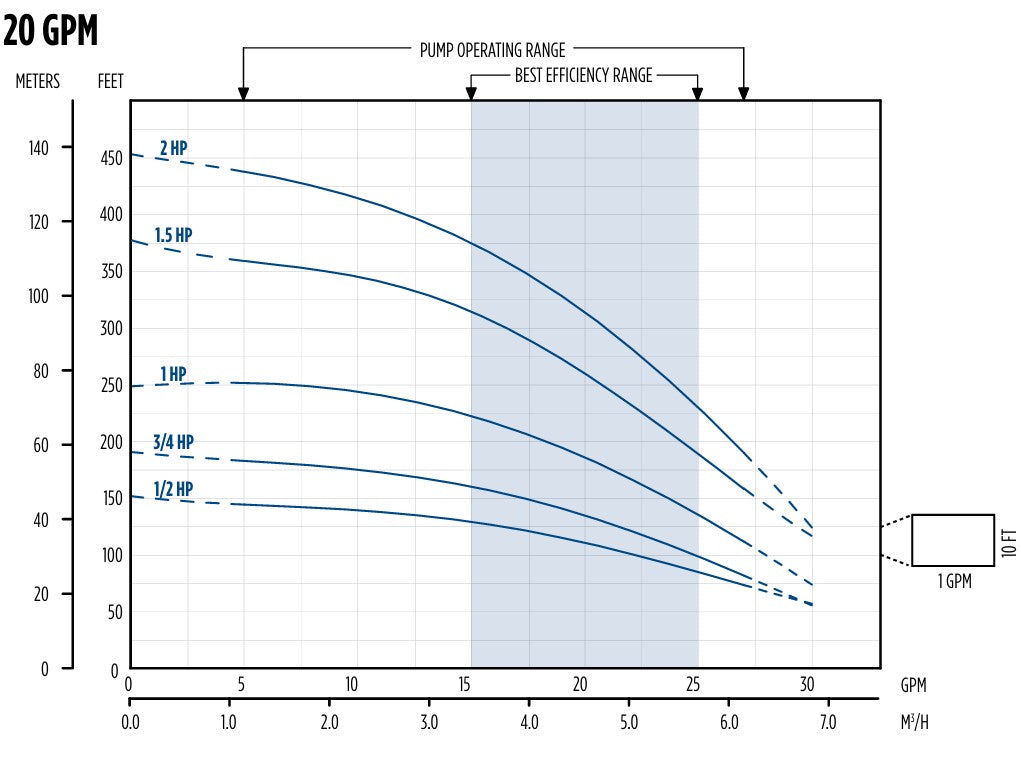

Flow 20 gpm
Shut Off 60 Hz 152 ft
Stages 4
Motor Ambient Temperature Rating Nominal 30 °C

Liquid
Maximum Fluid Temperature 120 °F

Materials of Construction
Pump Body Material AISI 304 Stainless Steel
Impeller Material Acetal
Motor Bracket Material Thermoplastic
Check Valve Yes
Discharge Material Thermoplastic
Intake Screen Material Thermoplastic
Thrust Bearing Kingsbury Type
Lead Insulation Material XLPE
Cable Guard Material Thermoplastic

Dimensions
Discharge Threaded - FNPT
Discharge Diameter 1.25 "
Product Length 22.48 "
Diameter With Cable Guard 3.9 "
Motor Length 9.51 "
Pump Length 12.97 "
Product Weight 25 lb

Other
Component Motor Part Number 2445046110 G
Component Pump Part Number 94752005
Warranty Standard Time 12 Month Install
Applications Filtered effluent service, aeration and ornamental fountains/waterfalls



Please Note: When replacing a pump, the pump float must also be replaced. We will not warranty these water pumps if the float is not purchased.

septicstop

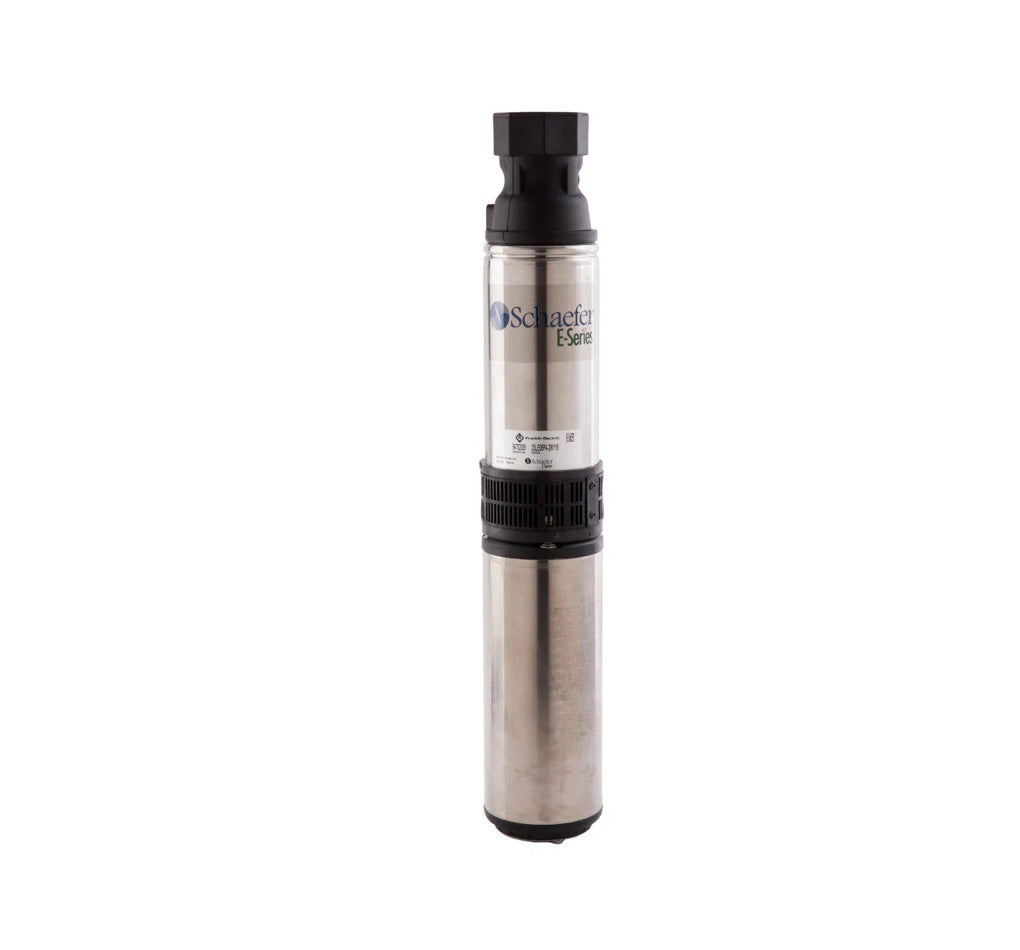

Franklin Electric E-Series 1/2 HP, 20 GPM Mid Suction Septic Effluent Pump

$370.00
