FujiMAC 120R2 Septic Air Pump – Mid-to-high capacity linear diaphragm pump for aerobic treatment systems. Quiet, oil-free operation with thermal protection and easy maintenance.

The FujiMAC 120RII can be used to replace many waste water air pumps. This pump is a direct replacement for the common 120 liter per minute pumps found on the majority of residential aerobic treatment systems. It can also be used for larger systems where two or more 120 liter pumps are used. The FujiMAC line of pumps come with the industry standard alarm and air line connections that make it a simple plug and play replacement for competing pumps

Applications

• Designed for most 800GPD, 840/850GPD and 960GPD residential and light commercial aerobic treatment systems

• Suitable for systems requiring 120 L/min rated airflow

• Operates efficiently within the 2.1–3.1 PSI pressure range

Specifications

• Rated Voltage: 120V AC

• Frequency: 60 Hz

• Power Consumption: 93 W

• Suggested Pressure Range: 2.1 – 3.1 PSI

• Normal Pressure: 2.6 PSI

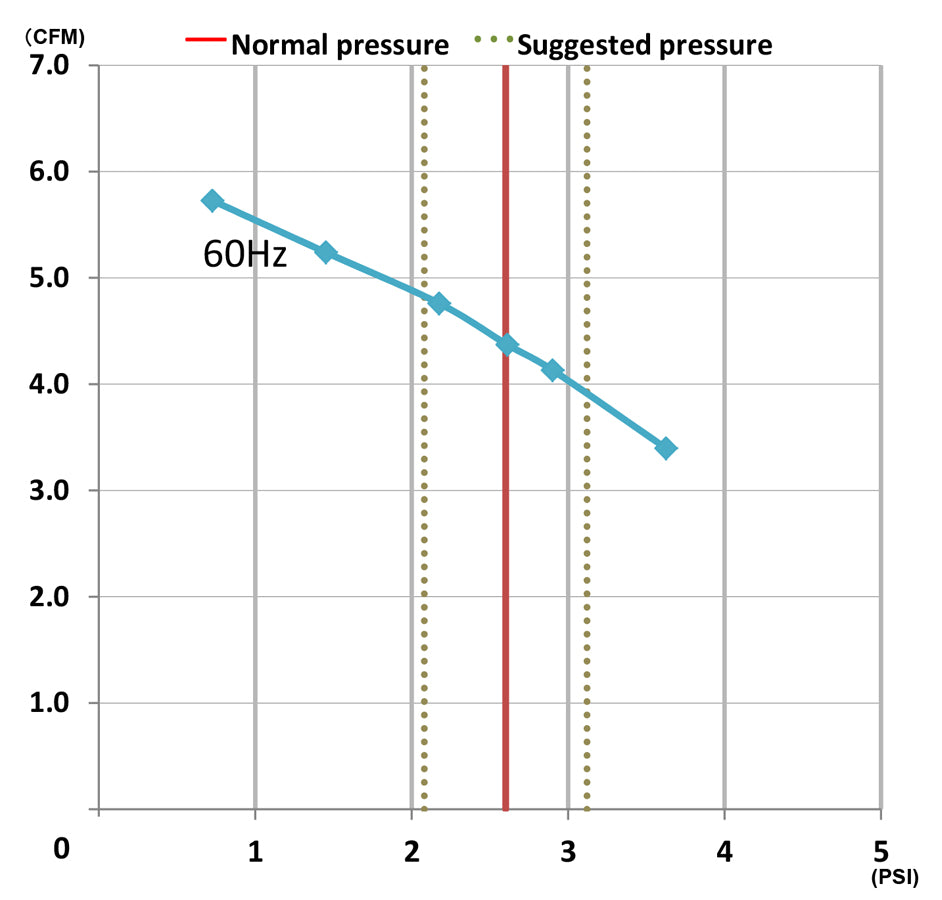

• Airflow at Rated Pressure: 120 L/min (4.2 CFM)

• Sound Level: 41 dB(A)

• Weight: 11 lbs

• Dimensions (L × W × H): 8 1/8" × 6 3/8" × 7 1/2"

• Outlet OD / ID: 1" OD, 3/4" ID
