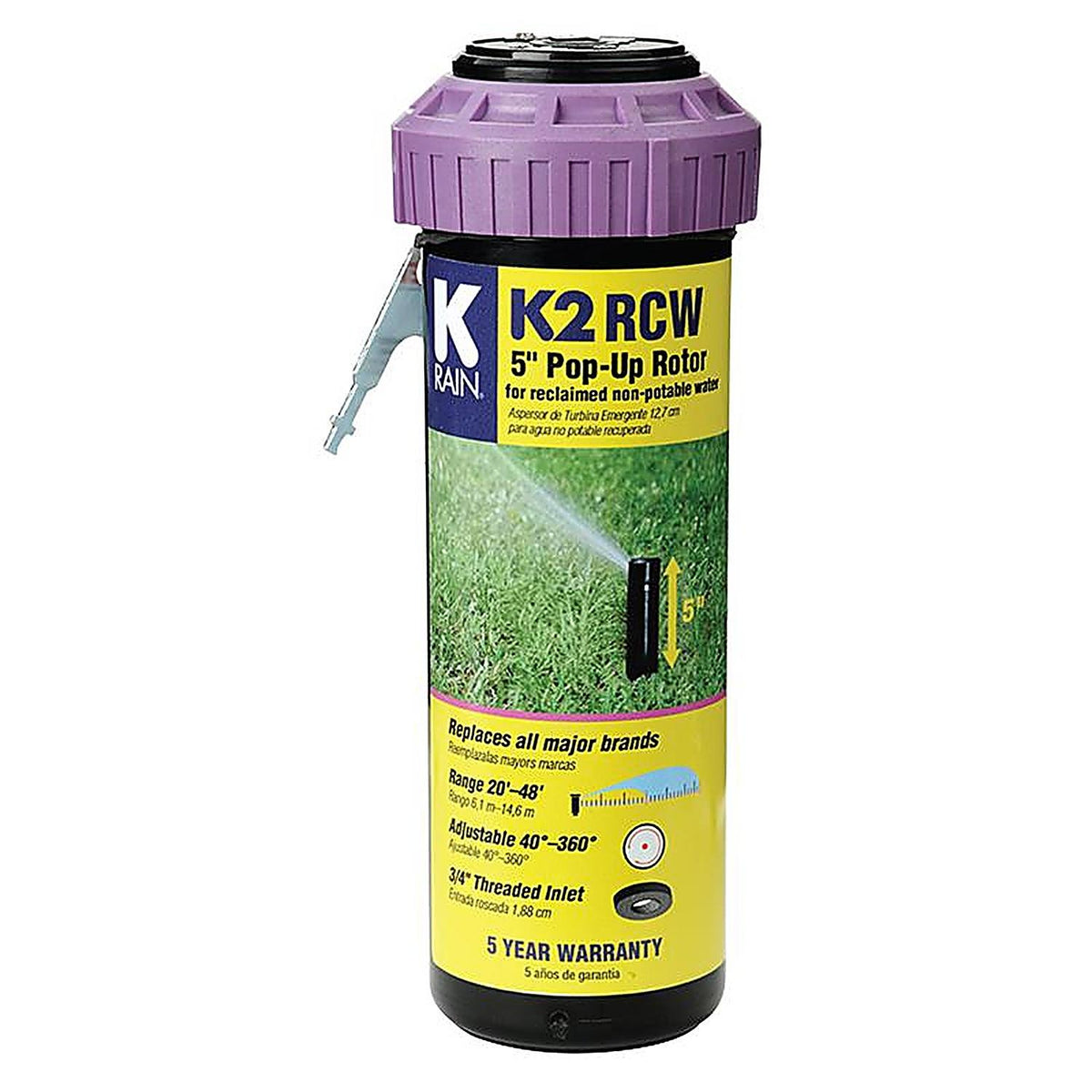

The K2 Smartset RCW 5-in Pop-Up Gear Drive is designed specifically for use on reclaimed water systems. Easy to set patented arc adjustment from 40 - 360 degrees, with pre-installed 3 GPM low angle nozzle. Tamper resistant arc memory clutch, prevents internal gear damage and returns rotor to its prior setting.
A factory installed purple cap on the sprinkler head conforms to State and local codes requiring identification of products being used for non-potable or reclaimed water.
Features and Benefits
- Glass filled nylon cap - withstands high pressure surges and water hammer
- Large dirty-water screen for compatibility with reclaimed and recycled water sources
- Patented easy arc set - for easy adjustability
- 5-in riser is perfect for thick grass
- Pre-installed, 3-GPM, low angle nozzle ensures the correct trajectory of reclaimed water
- ¾" Inlet – Replaces all standard rotors
- 2N1 Adjustable or Continuous Rotation - Provides a full range of adjustment from 40° to a continuous full circle.
- Patented Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
- Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.
- Time Proven Patented Reversing Mechanism - Assures continuous reverse and return...over a 20 year history.
- Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.
- Rubber Cover – Seals out dirt and increases product durability
- Wide Selection of Nozzles - Including standard and low angle, provides flexibility in system design.
- Check Valve available - Prevents low head drainage.
Specifications
- Inlet: 3/4" Threaded NPT
- Arc Adjustment Range: 40° to Continuous 360°
- Flow Range: .5 - 10.0 GPM
- Pressure Rating: 20 - 70 PSI
- Precipitation Rate: .06 to .50 Inches Per Hour
- (Depending on Spacing and Nozzle Used)
- Overall Height (Popped Down): 7 1/2"
- Radius: 20' to 48'
- Low Angle Nozzle Trajectory: 12°
- Low Angle Nozzle: Included
- Riser Height: 5"
