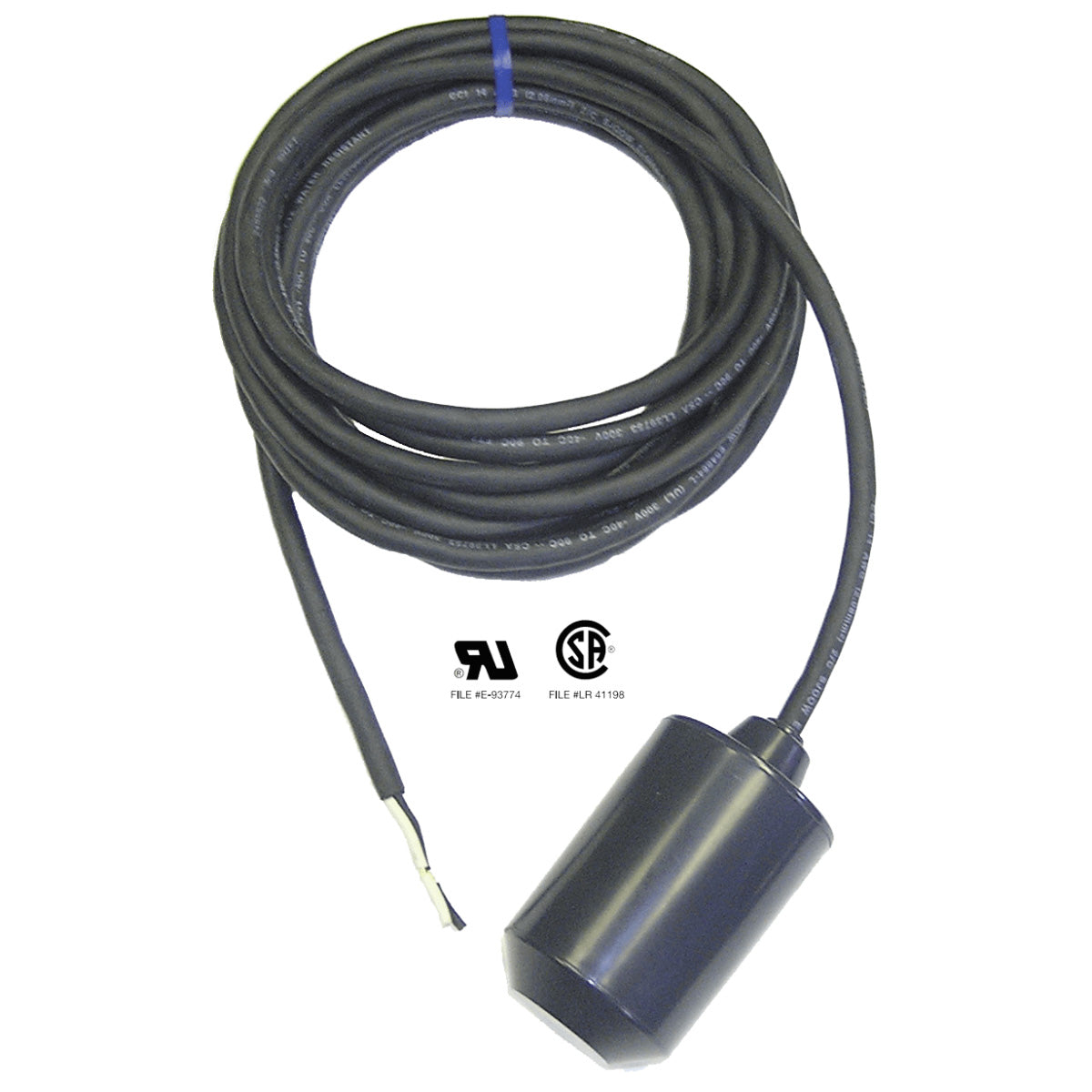

Pump Duty Float Switch - 10 Foot - Normally Open - Wide Angle

These high quality float switches are designed for pump duty loads. The float switch is as normally open or pump down (circuit is complete when the float is elevated).

The float cord is intended to be attached to a vertical pipe a band clamp, cable tie or tether clamp. As an option the float can be installed with a cable weight as the pivot point.

This float has skived ends, where the insulated wire leads inside the cable are intended to be wired into other system components inside a junction box.

Competitor Crosses

• SJE Rhombus Model 1002712 (10PMDWOP SJE PumpMaster® Pump Switch)
• Conery MFG Model 2900-B3S4-10


Ratings

• 13 AMP @ 120/240 VAC
• 1/2 HP @ 120/240 VAC
• 58.8 LRA


Operation

• Normally Open (Pump Down)

Operating Angle

• Wide Angle
  • Float Hanging Down Contacts are Open
  • Contacts Close @ 45° Above Horizontal
  • Contacts Open @ 45° Below Horizontal


Cord

• 10' Flexible 16 Gauge 2 Conductor SJOW (UL & CSA) CPE (Chlorinated Polyethylene) Jacketed

Housing

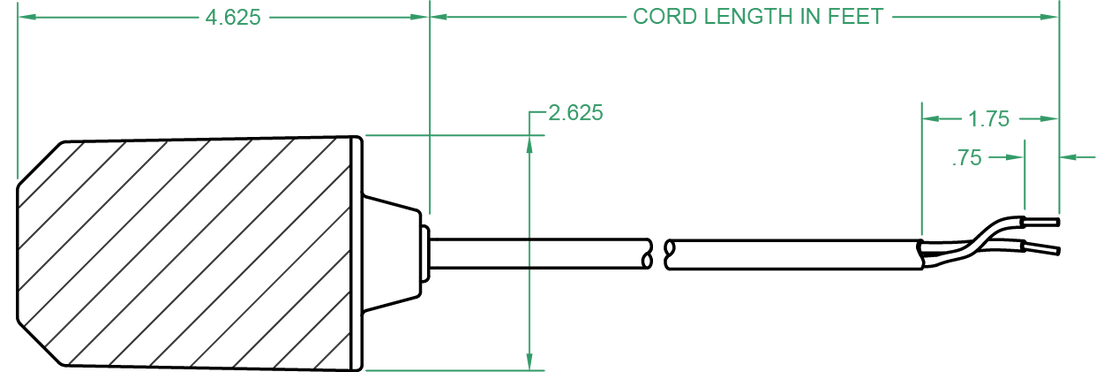

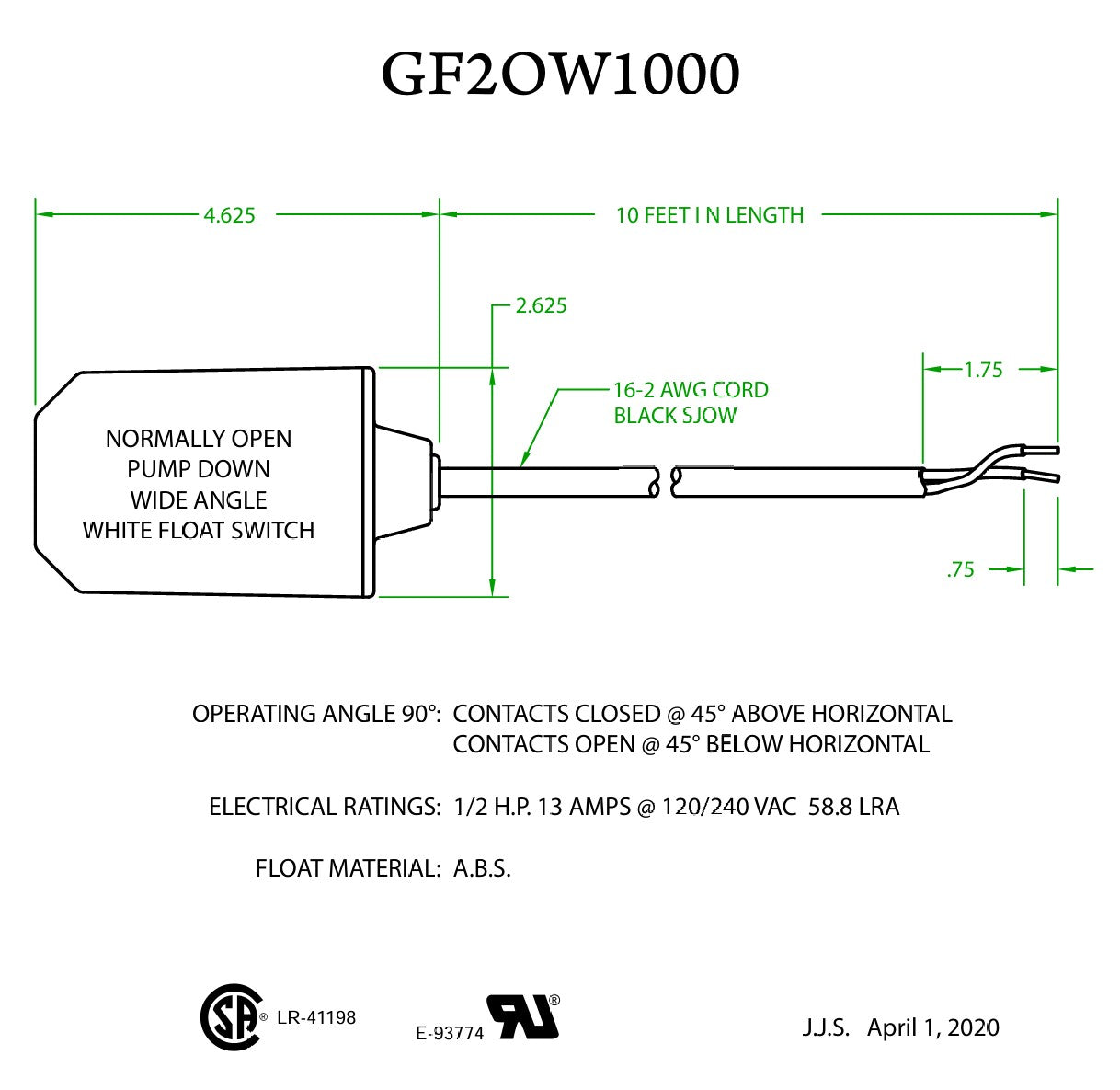

• 2.625" Dia x 4.625"

Float Material

• ABS (Acrylonitrile Butadiene Styrene)

Specific Gravity

• 0.6

Operating Temperature

• Up to 180ºF (82ºC)

Pump Range

• 7" to 28" adjustable based upon length of cable beyond clamp / tether

Float Switch

Mechanical (Contains no mercury) UL 508 listed

Warranty

• 1 Year
