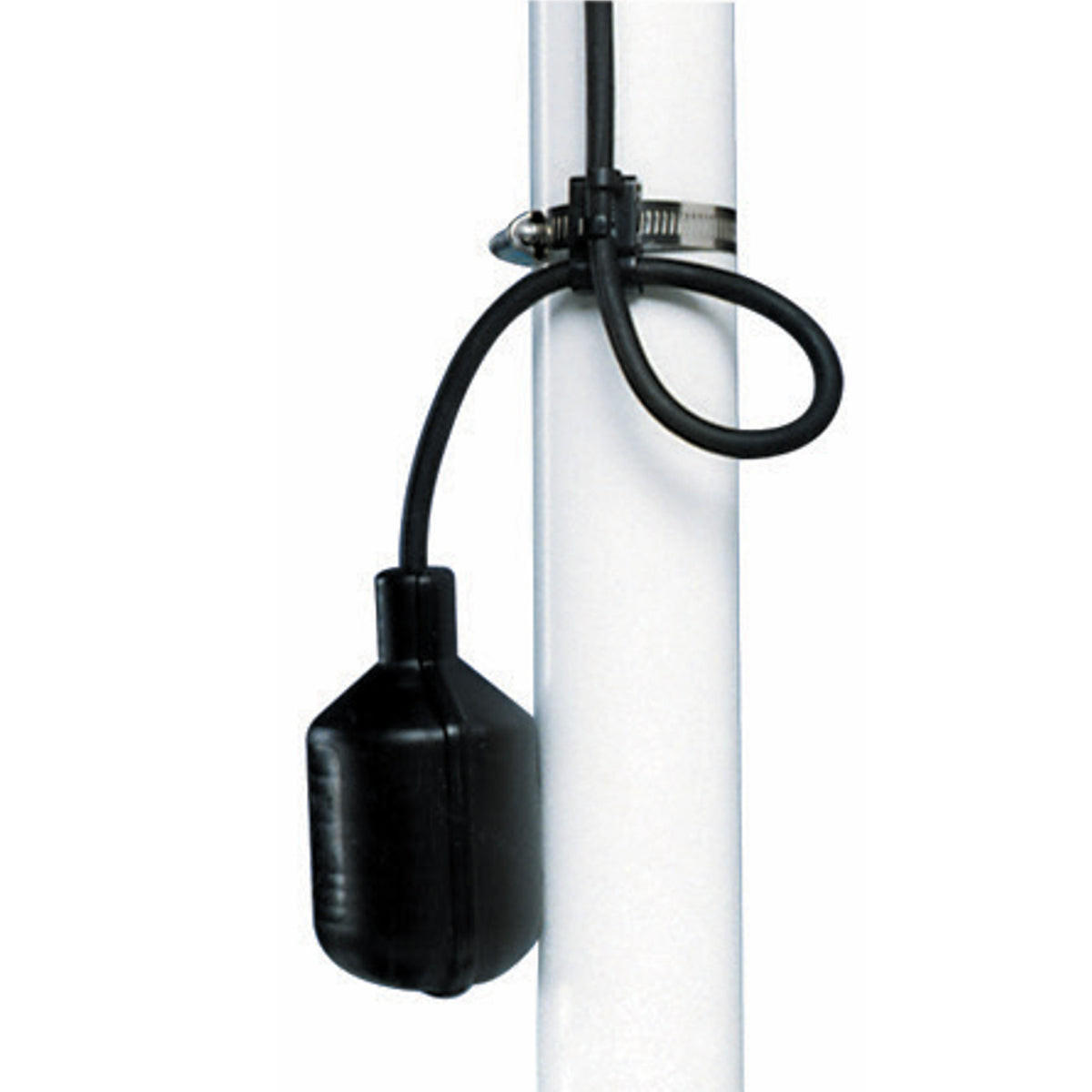

This mechanically-activated, wide-angle switch provides automatic control of pumps in:
  • Water
  • Sewage applications
These pump switches are not sensitive to rotation or turbulence allowing them to be used in both calm and turbulent applications.

Features:

    • Flexible SJOW, water-resistant (CPE) cable
    • High impact, corrosion resistant, polypropylene float housing
    • Temperature rating up to 60º C (140º F)
    • Maximum water depth of 9 meters (30 feet) or 90 kPa (13 psi)
    • IPX8 enclosure rating
    • Float dimensions: 7.0 cm diameter x 12.3 cm long (2.74 inch x 4.83 inch)
    • Suitable for Catagory II installations
    • Protected by double insulation
    • Adjustable pumping range of 20 to 91 cm (8 to 36 inches)
    • UL Recognized, CSA certified.
    Note: These switches are not recommended for controlling electrial loads less than 100 mA, 12 VAC. Must be used with pumps that provide integral thermal overload protection

Options:

  • For pump down applications as specified by part number
  • Without a plug for direct wiring in 120 VAC or 230 VAC applications
  • In standard cable lengths of 10 feet  - longer lengths available

UL Recognized, CSA Certified

Three Year Limited Warranty

Note: Clamp not included, can be purchased separately here: SJE Rhombus Float Clamp

Specifications:

  • Voltage 50 Hz/60 Hz Single Phase: 125/250 VAC
  • Maximum Pump Running Current: 13 amps
  • Maximum Pump Starting Current: 60 amps
  • Cable: 16 gauge, 2 conductor

NOTE: This switch must be used with pumps that provide integral thermal overload protection.

septicstop

SJE Rhombus Micromaster Plus Pump Float Switch 10FT (Mechanical)

$85.00
$52.00
Fast Shipping - Most orders placed before 2 PM CT ship the same business day.
Ordering Online? Your order is expected to ship on the next business day
FAST
DELIVERY
This mechanically-activated, wide-angle switch provides automatic control of pumps in:
  • Water
  • Sewage applications
These pump switches are not sensitive to rotation or turbulence allowing them to be used in both calm and turbulent applications.

Features:

    • Flexible SJOW, water-resistant (CPE) cable
    • High impact, corrosion resistant, polypropylene float housing
    • Temperature rating up to 60º C (140º F)
    • Maximum water depth of 9 meters (30 feet) or 90 kPa (13 psi)
    • IPX8 enclosure rating
    • Float dimensions: 7.0 cm diameter x 12.3 cm long (2.74 inch x 4.83 inch)
    • Suitable for Catagory II installations
    • Protected by double insulation
    • Adjustable pumping range of 20 to 91 cm (8 to 36 inches)
    • UL Recognized, CSA certified.
    Note: These switches are not recommended for controlling electrial loads less than 100 mA, 12 VAC. Must be used with pumps that provide integral thermal overload protection

Options:

  • For pump down applications as specified by part number
  • Without a plug for direct wiring in 120 VAC or 230 VAC applications
  • In standard cable lengths of 10 feet  - longer lengths available

UL Recognized, CSA Certified

Three Year Limited Warranty

Note: Clamp not included, can be purchased separately here: SJE Rhombus Float Clamp

Specifications:

  • Voltage 50 Hz/60 Hz Single Phase: 125/250 VAC
  • Maximum Pump Running Current: 13 amps
  • Maximum Pump Starting Current: 60 amps
  • Cable: 16 gauge, 2 conductor

NOTE: This switch must be used with pumps that provide integral thermal overload protection.
$85.00
$52.00

This mechanically-activated, wide-angle switch provides automatic control of pumps in:
  • Water
  • Sewage applications
These pump switches are not sensitive to rotation or turbulence allowing them to be used in both calm and turbulent applications.

Features:

    • Flexible SJOW, water-resistant (CPE) cable
    • High impact, corrosion resistant, polypropylene float housing
    • Temperature rating up to 60º C (140º F)
    • Maximum water depth of 9 meters (30 feet) or 90 kPa (13 psi)
    • IPX8 enclosure rating
    • Float dimensions: 7.0 cm diameter x 12.3 cm long (2.74 inch x 4.83 inch)
    • Suitable for Catagory II installations
    • Protected by double insulation
    • Adjustable pumping range of 20 to 91 cm (8 to 36 inches)
    • UL Recognized, CSA certified.
    Note: These switches are not recommended for controlling electrial loads less than 100 mA, 12 VAC. Must be used with pumps that provide integral thermal overload protection

Options:

  • For pump down applications as specified by part number
  • Without a plug for direct wiring in 120 VAC or 230 VAC applications
  • In standard cable lengths of 10 feet  - longer lengths available

UL Recognized, CSA Certified

Three Year Limited Warranty

Note: Clamp not included, can be purchased separately here: SJE Rhombus Float Clamp

Specifications:

  • Voltage 50 Hz/60 Hz Single Phase: 125/250 VAC
  • Maximum Pump Running Current: 13 amps
  • Maximum Pump Starting Current: 60 amps
  • Cable: 16 gauge, 2 conductor

NOTE: This switch must be used with pumps that provide integral thermal overload protection.
